Post by silverfoxvtx on Mar 19, 2017 13:57:51 GMT -5
Hello, I have a New Yamaha A2060 receiver......I am hooking up a 2 channel XPA Gen3 amp to the 2 front towers. On the back of the receiver is pre-outs red and white.....which goes to the amp? Does it matter?  Is red for the right speaker or does it matter? |
|
|
|
Post by knucklehead on Mar 19, 2017 14:02:28 GMT -5
It matters greatly if you like stereo sound with the proper sound stage. Red preamp out is for the right side - white is left. The area in white is your preamp out jacks. Use the front L/R (white/red) jacks to the amp. This will also free up two amp channels in the AVR - you can reassign those two amp channels for zone II or you can leave them idle.
|
|
|
|
Post by RichGuy on Mar 19, 2017 14:05:44 GMT -5
Yes Red is the color code for Right and White is the color code used for Left
|
|
|
|
Post by silverfoxvtx on Mar 19, 2017 14:07:06 GMT -5
Back of amp doesn't say right or left.....what is it the in put on the right side of the amp is for the right?
|
|
dougport
Sensei
Posts: 407
Member is Online
|
Post by dougport on Mar 19, 2017 14:17:37 GMT -5
Back of amp doesn't say right or left.....what is it the in put on the right side of the amp is for the right? It doesn't matter, you have 2 channels and whichever you choose can be the left or right. Generally most people will use the right side for the right channel and left side for the left |
|
|
|
Post by frenchyfranky on Mar 19, 2017 14:22:34 GMT -5
Back of amp doesn't say right or left.....what is it the in put on the right side of the amp is for the right? Really doesn't matter, you're logical will tell you no channel are really assigned to left or right but it should be logical to use their respective physical side. |
|
|
|
Post by silverfoxvtx on Mar 19, 2017 14:25:01 GMT -5
Good to go.....guess I will turn it on and see what happens....fire extinguisher is ready. Lol
|
|
|
|
Post by frenchyfranky on Mar 19, 2017 14:26:34 GMT -5
dougport you beat by the time I wrote my answer and check the back picture of the amp on Emo website.
|
|
|
|
Post by frenchyfranky on Mar 19, 2017 14:27:45 GMT -5
Good to go.....guess I will turn it on and see what happens....fire extinguisher is ready. Lol Enjoy listening if you don't need your extinguisher. |
|
|
|
Post by RichGuy on Mar 19, 2017 14:33:53 GMT -5
As said it doesn't matter as long as you keep things arranged correctly
Since the amp has lights in the front I like the lights to be correct as Left and Right so on the back connections I us the Left side of the amp for Right and the Right side of the amp as Left this make the lights correct for R/L in the front.
For HT amp connections (7 channel) I start at the amps back left connections and go R back-surround, R side-surround, R Front, Center, L Front, L side-surround, L rear-surround
|
|
|
|
Post by knucklehead on Mar 19, 2017 14:40:37 GMT -5

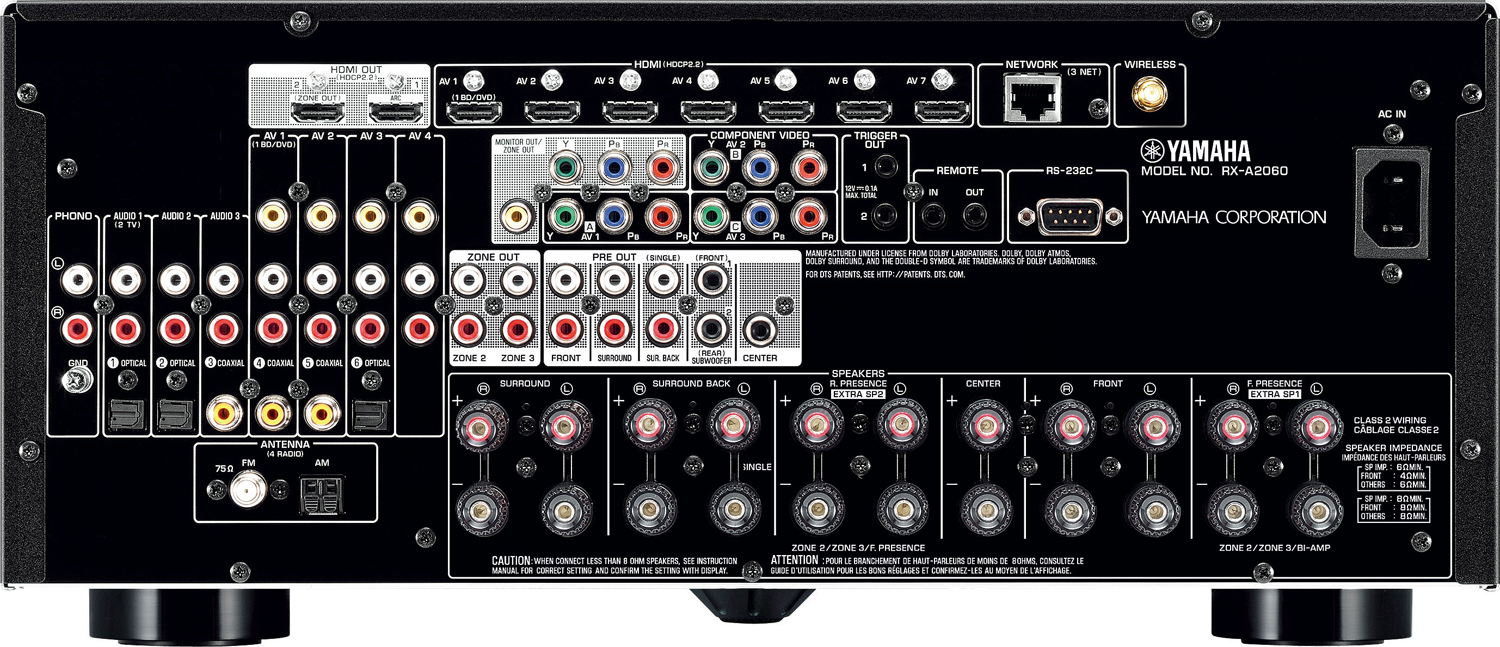

Look at the pic below. In that white box is the preamp outs. Underneath one set of L/R - LEFT/RIGHT WHITE/RED jacks is a label - FRONT. Use them as they are marked. It's that easy!  |
|
hemster
Global Moderator
Particle Manufacturer
...still listening... still watching
Posts: 51,951
|
Post by hemster on Mar 19, 2017 15:54:13 GMT -5
Yes Red is the color code for Right and White is the color code used for Left ^What he said. Right is Red and the other... well... you figure it out!  |
|
|
|
Post by leonski on Mar 29, 2017 1:43:58 GMT -5
Given how anemic HT amps are, if you offload the front channels to an outboard amp, that is all to-the-good.
You'll have slightly more power to allot to the remaining speakers hooked to the receiver.
I'd also like to see a small monoblock used for the 'center'. That'll Really Help!
Guys, you are 100% about Red = Right.
Look at the far left of the back panel of the receiver. Small R or L in a white circle next to the appropriate input line.
|
|
|
|
Post by paulb04 on Jan 27, 2018 12:13:21 GMT -5
Look at the far right next to phone. There is an R and a L marked. Just follow it across if your unsure.
|
|
|
|
Post by knucklehead on Jan 27, 2018 12:43:45 GMT -5
Look at the far right next to phone. There is an R and a L marked. Just follow it across if your unsure. It's been almost a year ago that the OP started this thread - haven't heard any reports of fire... |
|
|
|
Post by paulb04 on Jan 27, 2018 15:16:32 GMT -5
Look at the far right next to phone. There is an R and a L marked. Just follow it across if your unsure. It's been almost a year ago that the OP started this thread - haven't heard any reports of fire... I get it, Newbie and an old thread. Sometimes having good information in old threads is how I find answers to questions that I have. Just trying to contribute with what I know. |
|
|
|
Post by knucklehead on Jan 27, 2018 18:23:36 GMT -5
It's been almost a year ago that the OP started this thread - haven't heard any reports of fire... I get it, Newbie and an old thread. Sometimes having good information in old threads is how I find answers to questions that I have. Just trying to contribute with what I know. Welcome to the Lounge. You can enter any time you like... |
|
